Services

Metal Cutting Services

in Singapore

High-accuracy laser cutting for stainless steel, aluminium, carbon steel, brass, copper and more. Tolerances from ±0.1 mm, clean edges, fast turnaround — all from our Singapore facility.

Upload Drawing & Get Quote
View Capabilities
mm tolerance
± 0
max steel thickness
0 mm
typical turnaround
0 h
metal grades
0 +

What We Do

Custom Cut Parts for Real Project Needs

Our fibre laser systems deliver precise, burr-free cuts across a wide range of metals and thicknesses — from thin gauge sheet metal to heavy structural plate.

Cutting Tolerance

Dimensional accuracy maintained across all production runs, from prototypes to bulk orders.

±0.1mm

standard / ±0.05mm available on request

Max Sheet Size

Full sheet processing without repositioning. Reduces alignment errors and speeds up throughput.

3000×1500
mm — standard sheet format


Material Thickness

From thin 0.5 mm sheet to 25 mm structural steel. Thick plate uses high-pressure N₂ or O₂ assist.

0.5 – 25mm

steel; 0.5–20mm aluminium

Edge Quality

Clean, oxide-free edges achieved with inert gas assist. Minimal secondary finishing required.

Ra 3.2

μm typical surface roughness

Laser Power

6 kW fibre laser for high-speed cutting of reflective and thick metals without thermal damage.

6 kW

fibre laser — IPG source


Complex Profiles

DXF / DWG direct import. Tight radii, intricate cutouts, custom perforations — no tooling needed.

Any 2D

profile from your drawing file

Material Categories

Three Material Families

We process a broad range of metals and non-metals — from common structural alloys to specialty electronic films and precision display materials.

Don’t see your material? Contact us — we process many speciality alloys and can advise on the right parameters.

View Material →

Stainless Steel

0.5 – 20mm

304, 316, 316L, 430. Clean edges, excellent corrosion resistance. Popular for food, marine, medical parts.
Most Popular

Mild / Carbon Steel

0.5 – 25mm

S275, S355, A36. Cost-effective structural material. O₂-assist for thick plate; N₂ for clean edges.
Structural

Aluminium

0.5 – 20mm

6061, 5052, 7075, 1100. Lightweight panels, enclosures, brackets. N₂ assist for oxide-free surfaces.
High Demand

Brass

0.5 – 10mm

C260, C360. Decorative parts, connectors, valve components. Precise cut on thin sheet.
Decorative

Copper

0.5 – 6mm

C101, C110. Electrical busbars, heat sinks. Reflective — requires fibre laser; not CO₂.
Electrical

Galvanised Steel

0.5 – 4mm

Hot-dip or electro-galvanised. HVAC, signage, automotive trim. Cut in ventilated zone.
HVAC / Infra

Tool Steel

0.5 – 12mm

D2, H13, O1. Jig plates, die components. Hard materials handled with adjusted parameters.
Tooling

Spring Steel

0.1 – 3mm

65Mn, SK5. Thin gauge, tight tolerance. Flex clips, springs, precision contact components.
Precision
Typical Applications

Where Metal Cutting is Used

From single prototype parts to recurring production batches — industries across Singapore rely on our metal cutting capability.

Semiconductor & Electronics

Precision Tooling & Fixtures

Carrier frames, vacuum chucks, wafer-handling fixtures and equipment brackets requiring tight tolerances and burr-free edges.
Carrier frames Equipment brackets Shielding plates
Industrial Automation

Machine Components & Panels

Control panels, mounting brackets, conveyor parts, and base plates. Often combined with CNC bending for finished assemblies.
Control panels Mounting plates Conveyor parts
Marine & Offshore

Structural & Deck Components

316 stainless steel flanges, gussets, access panels and handrail components. Corrosion-resistant grades for harsh environments.
Flanges Access panels Gussets
Construction & Infrastructure

Architectural Metalwork

Decorative screens, perforated facade panels, balustrade infills, and custom-shaped structural inserts.
Facade panels Balustrade infill Decorative screens
Medical & Cleanroom

Equipment & Enclosure Parts

Surgical instrument components, equipment housings, and cleanroom rack panels in 304 / 316L stainless steel.
Equipment housings Instrument parts Rack panels
Signage & Retail

Custom Letter & Panel Cutting

Halo-lit stainless letters, brass inlay panels, aluminium display frames and point-of-sale fixtures.
Signage letters Brass inlay Display frames

Where Metal Cutting is Used

From single prototype parts to recurring production batches — industries across Singapore rely on our metal cutting capability.

Upload Drawing

DXF, DWG, PDF, or STEP. We accept most 2D/3D formats.

Engineering Review

We check tolerances, material fit, and flag any DFM issues before quoting.

Quotation

Detailed quote within 24h — material, thickness, quantity, finish noted.

Production

Cutting programmed and run on our fibre laser. Inline QC checks throughout.

Quality Check

Dimensional verification. First-off approval for new jobs; batch sampling for repeats.

Upload Drawing

Same-day dispatch for in-stock jobs. Local Singapore delivery or self-collect.

Why Choose Us

What Makes Our Metal Cutting Different

Not just a machine — an engineering team that understands your application.

DFM Review on Every Order

Before we cut a single part, our engineers review your drawing for manufacturability. We catch tolerance conflicts, tight corner radii, and material mismatches early — saving you costly reruns and delays.


High-Power Fibre Laser for Reflective Metals

Copper, brass, and aluminium reflect CO₂ lasers — our 6 kW fibre system handles them natively. Clean cuts, no back-reflections, and consistent edge quality across reflective grades.


Multi-Process Under One Roof

Need bending, welding, or surface finishing after cutting? We handle it in-house. One job, one supplier, one delivery — no co-ordination between multiple vendors required.



Singapore Factory, Same-Timezone Support

Our team is based in Singapore. No export delays, no timezone gaps, no language barriers. Fast back-and-forth on changes, clear delivery co-ordination, and local collection available.
Why Choose Us

What Makes Our Metal Cutting Different

Not just a machine — an engineering team that understands your application.

Criterion Laser Cutting (Ours) Waterjet Plasma Cutting Stamping / Punching
Dimensional tolerance ±0.1mm ±0.2mm ±0.5–1mm ±0.05mm (with die)
Edge quality
Clean, low HAZ
No HAZ
Dross, rougher
Clean (shear)
Suitable thickness 0.5–25mm 0.5–200mm+ 1–50mm 0.3–6mm
Prototyping speed
Same / next day
1–3 days
Fast
Tooling: 1–3 weeks
Setup cost (NRE)
None
None
None
High (tooling)
Reflective metals
Yes (fibre laser)
Yes
Limited
Depends on die

Equipment Bracket Assembly

316 SS · ±0.1mm · 200 pcs

Offshore Panel Components

316L SS · 8mm · Custom profile

Perforated Facade Panels

Aluminium 5052 · 3mm · 1500 pcs

Featured Projects

Metal Cutting Work We've Delivered

A selection of recent metal cutting projects — spanning industries, materials, and complexity levels.

View All Metal Cutting Projects →

Pair With

Services That Work Well Together

Most metal cutting jobs benefit from downstream processing. We handle it all in-house.

After cutting

CNC Bending & Folding

Form cut blanks into brackets, enclosures and channels. Tight angle tolerances.

Request Similar →

After cutting

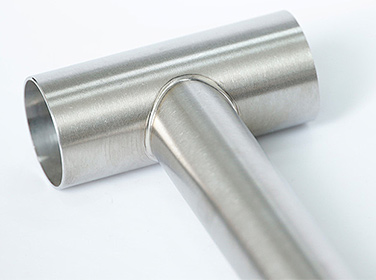

Welding & Structural Assembly

TIG / MIG welding for assemblies. Jigged for dimensional consistency.

Request Similar →

After cutting

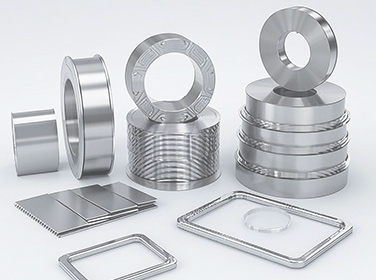

Polishing & Grinding

Deburring, mirror polishing, brushed finish. No secondary supplier required.

Request Similar →

Before / alongside

Laser Engraving

Add serial numbers, logos, and part markings in the same production run.

Request Similar →

FAQ

Metal Cutting Questions

These are some of the common questions customers ask before sending drawings or requesting quotation.

We work with DXF, DWG, AI, PDF (vector), and STEP/IGES for 3D reference. DXF is the preferred format as it preserves your geometry 1:1. If you only have a PDF or image, our team can redraw it — just note this may add a small surcharge and additional lead time for complex parts.

There is no minimum quantity. We regularly cut single prototype pieces as well as production runs of 5,000+. Pricing adjusts by quantity — the per-part cost drops significantly for orders over 50 pcs due to nesting efficiency. Request a quote with your target quantity and we’ll show you the unit price breakdown.


Our standard tolerance is ±0.1 mm on cut dimensions and ±0.05 mm on repeat (positional) accuracy. For tight-tolerance work we can hold ±0.05 mm on dimensions with extra programming care — please specify this on your drawing. Note that tolerances tighten for thinner material and loosen slightly for thick plate (>12 mm).

Both options are available. We maintain stock of common grades (304 SS, 316 SS, 6061 Al, mild steel) in standard thicknesses up to 20 mm. For speciality alloys, we can source to your spec or you can supply your own material — just ship it to our facility with your order number.

Standard turnaround is 2–5 working days from drawing approval. For urgent prototypes (1–5 parts), we can often deliver same-day or next-day if order is placed before noon. Large production batches (500+ parts) typically require 7–10 working days. Lead time depends on material availability, job complexity, and current queue depth — your quote will always include a confirmed delivery date.

Yes. Copper and brass are highly reflective and cannot be reliably cut by CO₂ lasers, but our 6 kW fibre laser handles them without issue. Copper up to 6 mm and brass up to 10 mm are in our standard capability range. We use nitrogen assist to prevent oxidation and maintain edge cleanliness. Note that copper pricing is higher due to longer cutting cycles.

Featured Projects

Metal Cutting Work We've Delivered

Need Custom Metal Parts? Start with Your Drawing

Send your drawing or project requirement for review. We can discuss materials, related processing needs and a practical next step for your project.



Confidentiality Note

We understand the value of your design files. The information you submit will be used only for project evaluation, quotation and production communication. We take customer confidentiality, data security and intellectual property protection seriously.
